SiB HVS Range

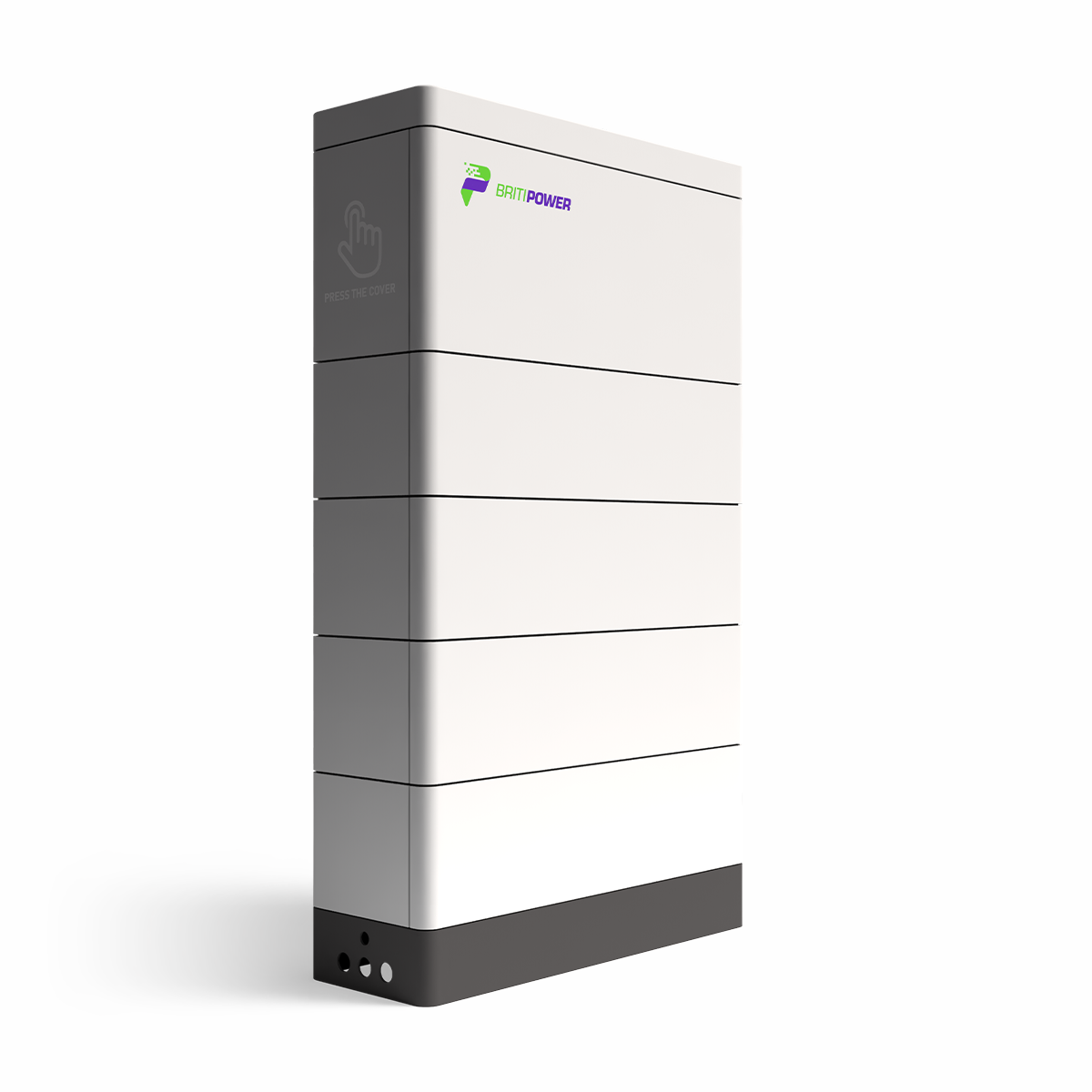

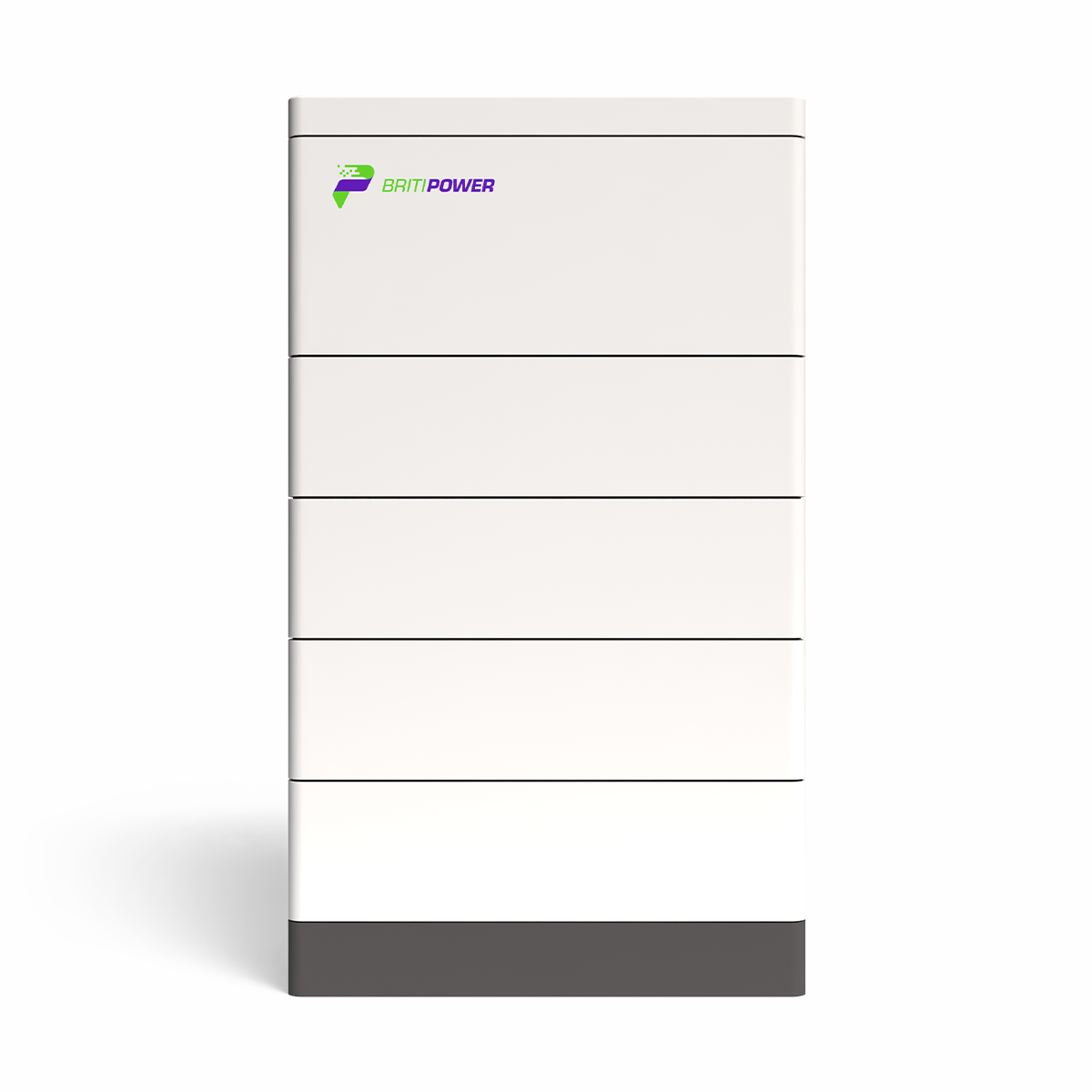

The SiB HVS Range is a high-voltage stackable lithium battery system designed for efficient, safe, and scalable energy storage. Built with advanced LFP technology and a modular stacked design, it delivers high energy density, long cycle life, and excellent performance across a wide temperature range. Ideal for residential and small commercial systems, it supports flexible capacity expansion while simplifying installation and transport.

Category: Energy Storage

High-Voltage LFP Battery System
Delivers maximum safety, thermal stability, and long service life with up to 6000 cycles.
Modular Stackable Design
Flexible capacity from 7.68 kWh to 25.6 kWh allows easy expansion to match energy demand.
High Depth of Discharge (90%)
Enables greater usable energy and improved system efficiency.
Wide Temperature Performance
Reliable operation in demanding environments, from –20°C to +60°C discharge temperature.
Easy Installation & Transport
Modular construction simplifies handling, installation, and future upgrades.
Smart Communication & Monitoring
RS485 and CAN interfaces with LED display for system status visibility.
Indoor & Outdoor Ready
IP65-rated enclosure supports installation in a wide range of environments.

Residential Solar Energy Storage Systems
Home Backup & Emergency Power Solutions

Hybrid and High-Voltage Inverter Systems

Self-Consumption & Peak-Shaving Applications

Scalable Energy Storage for Growing Power Needs

Small Commercial Solar + Storage Installations

Battery Parameter

Battery Cell	LiFePO4
Battery System Capacity	7.68kWh	10.24kWh	12.8kWh	15.36kWh	17.92kWh	20.48kWh	23.04kWh	25.6kWh
Module number	3	4	5	6	7	8	9	10
Nominal Capacity	50Ah
Depth of Discharge	90%
Nominal Voltage	153.6V	204.8V	256V	307.2V	358.4V	409.6V	460.8V	512V
Voltage Range	129.6 ~ 168.48Vdc	172.8224.64Vdc	216~280.8Vdc	259.2~336.96Vdc	302.4~393.12Vdc	345.6~449.28Vdc	388.8~505.44Vdc	432~561.6Vdc
Nominal Charge/ Discharge Current	50A
Dimension (W x H x D)	600 x 820 x 210 mm	600 x 980 x 210 mm	600 x 1140 x 210 mm	600 x 1300 x 210 mm	600 x 1460 x 210 mm	600 x 1620 x 210 mm	600 x 1780 x 210 mm	600 x 1940 x 210 mm
Weight	102.5kg	129kg	155.5kg	182kg	208.5kg	235kg	261.5kg	288kg
Installation	Stacked
Temperature of Charge	0~55ºC
Temperature of Discharge	-20ºC ~+60ºC
Protection Degree	IP65
Communication Port	RS485, CAN
Display	LED
Operation Humidity	5~95%
Max. Operating Altitude	2000m
Cycle Life	6000@80% DOD,25ºC ,0.5C
Certification	CE, CB, UN38.3, MSDS

Download Data Sheet
