This high-performance hybrid solar solution is designed to deliver maximum energy yield, reliable backup power, and flexible system configuration for modern applications. With up to 97.5% efficiency, dual MPPTs, and high charging and discharging capability, it maximizes solar utilization while ensuring fast and stable power backup. Advanced protection features, smart fault diagnosis, and UPS-level EPS switching provide worry-free operation, while its modular, easy-install design and comprehensive communication options enable seamless integration with PV, batteries, EV chargers, and the grid for a future-ready energy system.

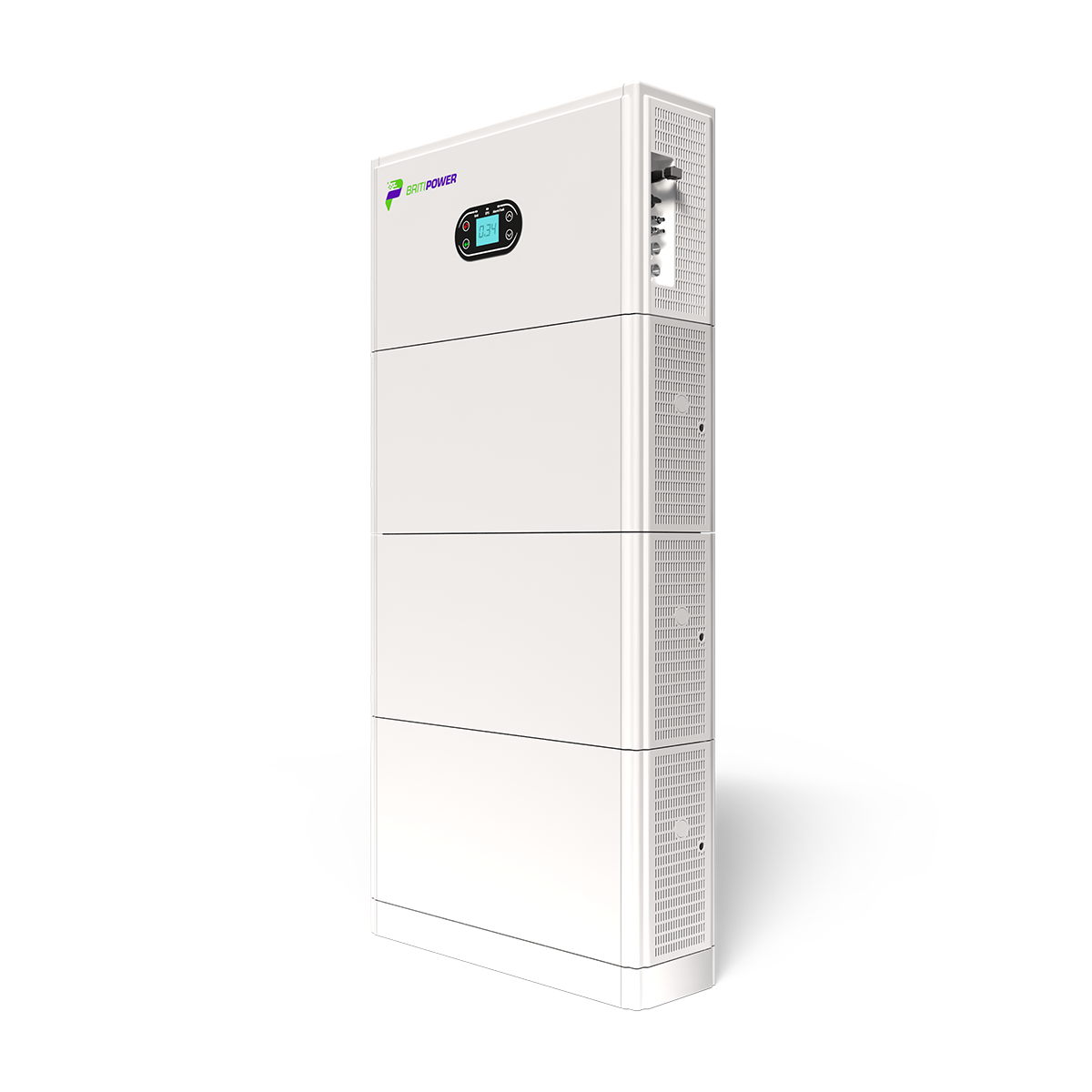

SiB ES System
This high-performance hybrid solar solution is designed to deliver maximum energy yield, reliable backup power, and flexible system configuration for modern applications. With up to 97.5% efficiency, dual MPPTs, and high charging and discharging capability, it maximizes solar utilization while ensuring fast and stable power backup. Advanced protection features, smart fault diagnosis, and UPS-level EPS switching provide worry-free operation, while its modular, easy-install design and comprehensive communication options enable seamless integration with PV, batteries, EV chargers, and the grid for a future-ready energy system.
Efficient Higher Revenue
- Max. efficiency 97.5%
- 2 MPP trackers, 160% DC input oversizing
- Max. charging/discharging current 100A for faster power backup
- Max. PV input current 16A, compatible with high-power modules.
Reliable Worry-Free
- DC & AC Type II SPD: prevent lightning damage
- High ingress protection rating of IP65: supports outdoor installation
- Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
- EPS Switching Under 10ms, UPS-level switching
Flexible Abundant Configuration
- Easy-install, quick-stack design
- Modular design allows for scalability and customization
- Multiple working modes and support parallel access to PV, batteries, normal loads, EV chargers, and grids
- Support RS485/CAN/WiFi/4G/LAN/Bluetooth optional: remote monitoring and operation via PC or mobile phones
- Residential Solar & Storage Systems.
- Home Backup Power (UPS / EPS)
- Self-Consumption & Energy Independence
- Hybrid & Grid-Connected Systems
- EV-Ready Home Energy Systems
- Scalable Solar Installations
| Input(Battery) | |
| Battery Type | LFP |
| Battery Energy | 5.12kWh |
| Number of Batteries | 1 |
| Dimension (W x H x D) | 640 x 875 x 210 mm |
| Battery Voltage | 51.2V |
| Voltage Range | 43.2V ~ 56.16V |
| Max. Charging / Discharging Current | 100A |
