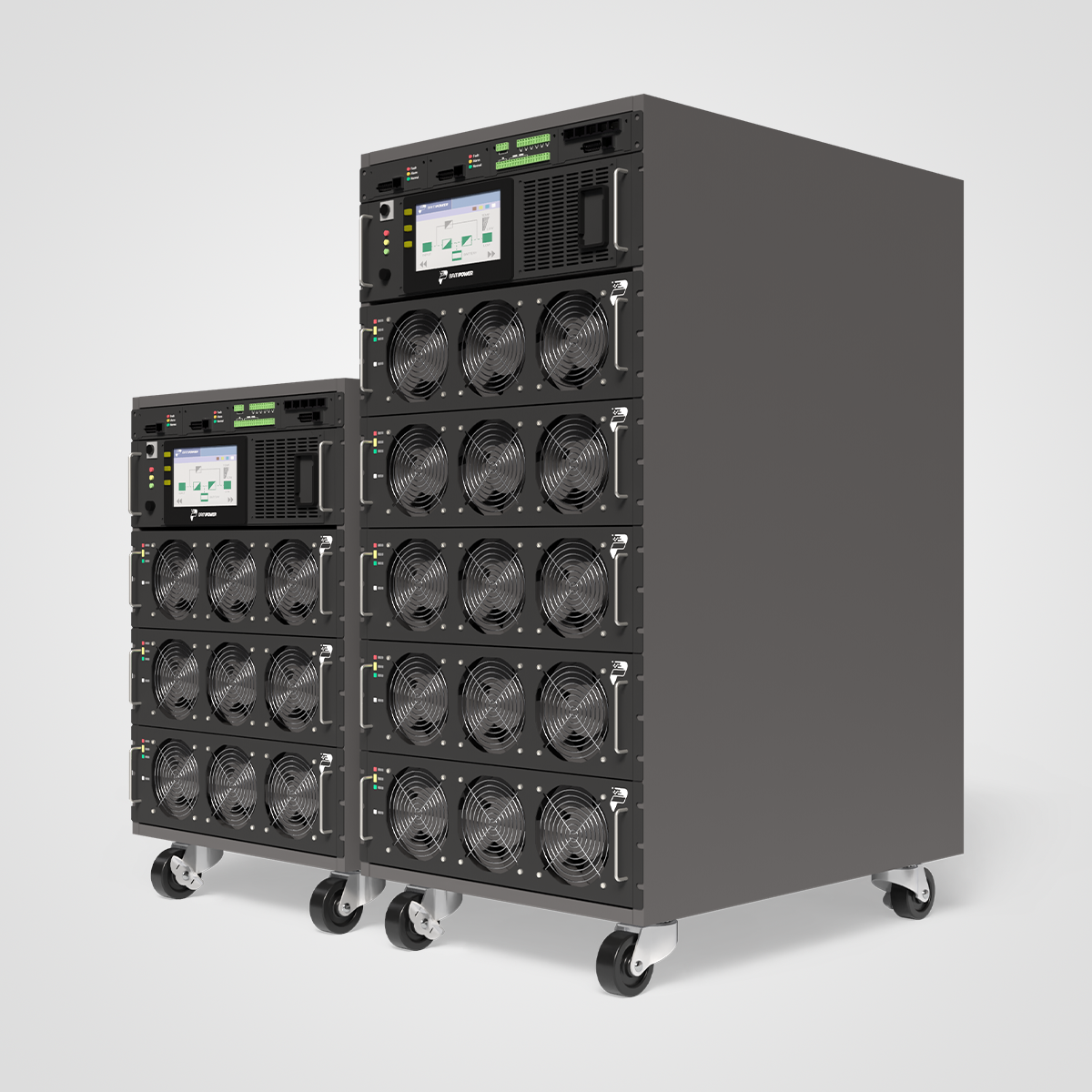

BP Modular Subrack Model 08 - Online Transformerless UPS

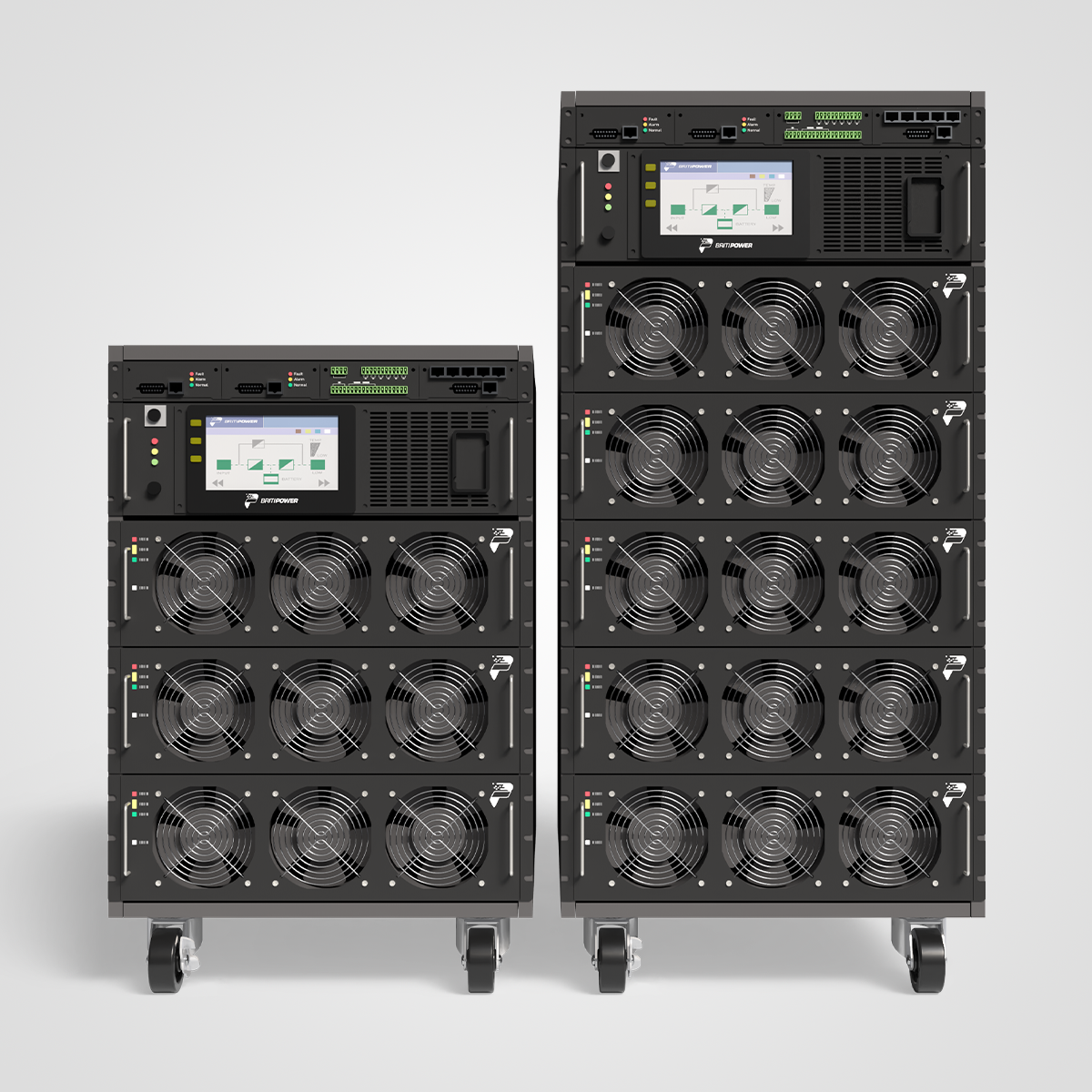

BP Modular Subrack Model 08 - Online Transformerless UPS - Image 2
BP Modular Subrack Model 08 - Online Transformerless UPS - Image 3

BP Modular Subrack Model 08 – Online Transformerless UPS

At Britipower, we understand the critical importance of maintaining uninterrupted power to safeguard your business operations and essential systems. Our Uninterruptible Power Supply (UPS) solutions are designed to provide reliable backup power and ensure the stability and security of your infrastructure. Whether you’re looking to protect small office equipment, data centers, or large-scale industrial applications, our range of UPS systems offers a tailored solution for every need.

  • Power range: 40~200kVA (3-Level PF: 1.0)
  • Mode: 3 phase input and 3 phase output
  • Module: 40/50/60kVA
Category:

Introducing our Next-Generation Modular UPS System—designed for maximum reliability, efficiency, and flexibility. With a fully modular structure, including hot-swappable power, bypass, and monitoring modules, maintenance and upgrades are seamless.

Engineered for high reliability, it operates across a wide voltage range (138V-485V) and ensures uninterrupted power with redundant parallel control and advanced digital bus systems. Its energy-saving features, such as 95.8% efficiency and low THDi (<3%), reduce operational costs while supporting parallel redundancy and load bus synchronization (LBS) for enhanced scalability.

With intelligent management tools, including a touch LCD display, remote monitoring, and flexible battery configurations, this UPS system is built for mission-critical applications—keeping your operations running smoothly, even in the toughest conditions.

  • Modular Design
  • High Reliability
  • Green and Power-Saving Features
  • LBS Functionality
  • Parallel Redundancy
  • Flexible Battery Configuration
  • Strong Load Capability
  • Intelligent Management
  • Generator Compatibility

This modular UPS system is ideal for:

  • Data Centers & IT – Ensures continuous server and network operations
  • Industrial & Manufacturing – Protects automation and production lines
  • Healthcare – Powers critical medical equipment and hospital systems
  • Telecommunications – Supports telecom towers and network infrastructure
  • Banking & Finance – Keeps ATMs, trading platforms, and data secure
  • Transportation & Infrastructure – Ensures reliable power for airports and traffic control
  • Government & Emergency Services – Supports military, defense, and emergency response systems

Perfect for any mission-critical environment requiring uninterrupted power and scalability.

Input

Nominal Voltage (Vac) 380/400/415, (3Ph+N+PE)
Operating Voltage Range (Vac) 138~305 for 40% load; 305~485 for 100% load
Power Factor ≥0.99
Harmonic Distortion (THDi) ≤3% (100% Linear load)
Bypass Voltage Range (Vac) Max. voltage: 220: +25% (Optional+10%, +15%, +20%)
230: +20% (Optional+10%, +15%)
240: +15% (Optional+10%)
Min. voltage: -45% (Optional-10%, -15% -20%, -30%)

Output

Nominal Voltage (Vac) 380/400/415, (3Ph+N+PE)
Voltage Regulation ±1%
Output Frequency (Hz) Line mode: Synchronize with input, when the input frequency >±10% (±1%/±2%/±4%/±5% optional), output 50/60 (±0.1); Bat. mode: (50/60±0.1%)
Crest Factor 3:1
Harmonic Distortion (THDv) ≤2% with linear load; ≤4% with nonlinear load
