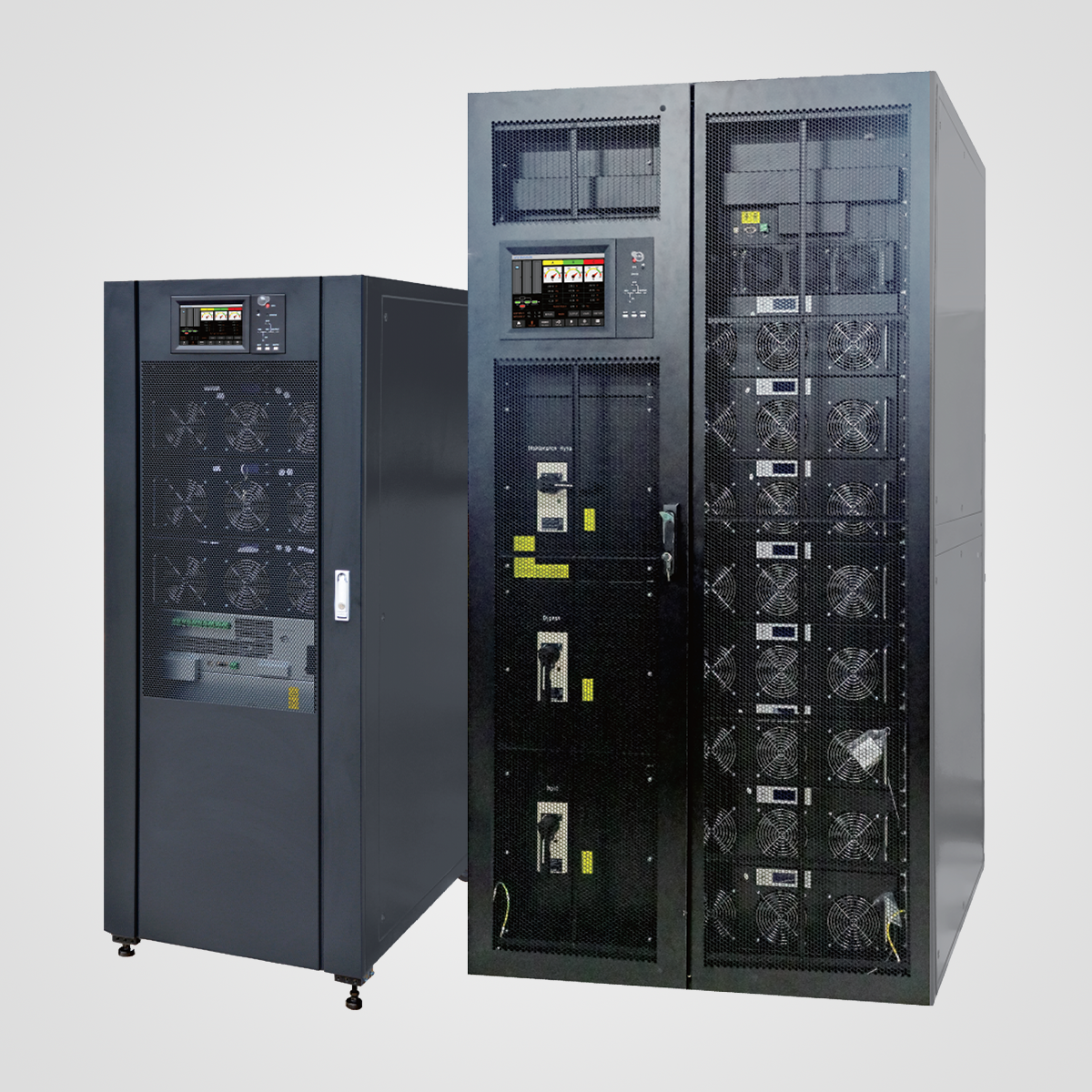

The BP Series modular online UPS from Britipower is designed to deliver robust and dependable power protection for critical loads in medium and large data center environments. Covering a wide capacity range from 40 kVA to 600 kVA, the RM Series is engineered to achieve maximum system availability and operational continuity. It utilizes advanced three-level inverter technology combined with power factor–corrected (PFC) input control to deliver exceptional performance, ultra-reliability, and high efficiency of up to 96%, reducing both energy consumption and operating costs.
Its compact, modular architecture provides high power density, supporting up to 600 kVA within a single cabinet. For increased scalability and resilience, up to three systems can be paralleled to provide capacity expansion or N+1 redundancy up to 1,500 kVA. This flexibility, combined with its space-saving design and advanced technology, makes the RM Series an ideal UPS solution for mission-critical applications in modern data centers and large facilities..
Compact, space-saving design
Delivers up to 600 kVA in a single cabinet with a footprint of less than 1.45 m², maximizing valuable floor space in data center environments.
High power density architecture

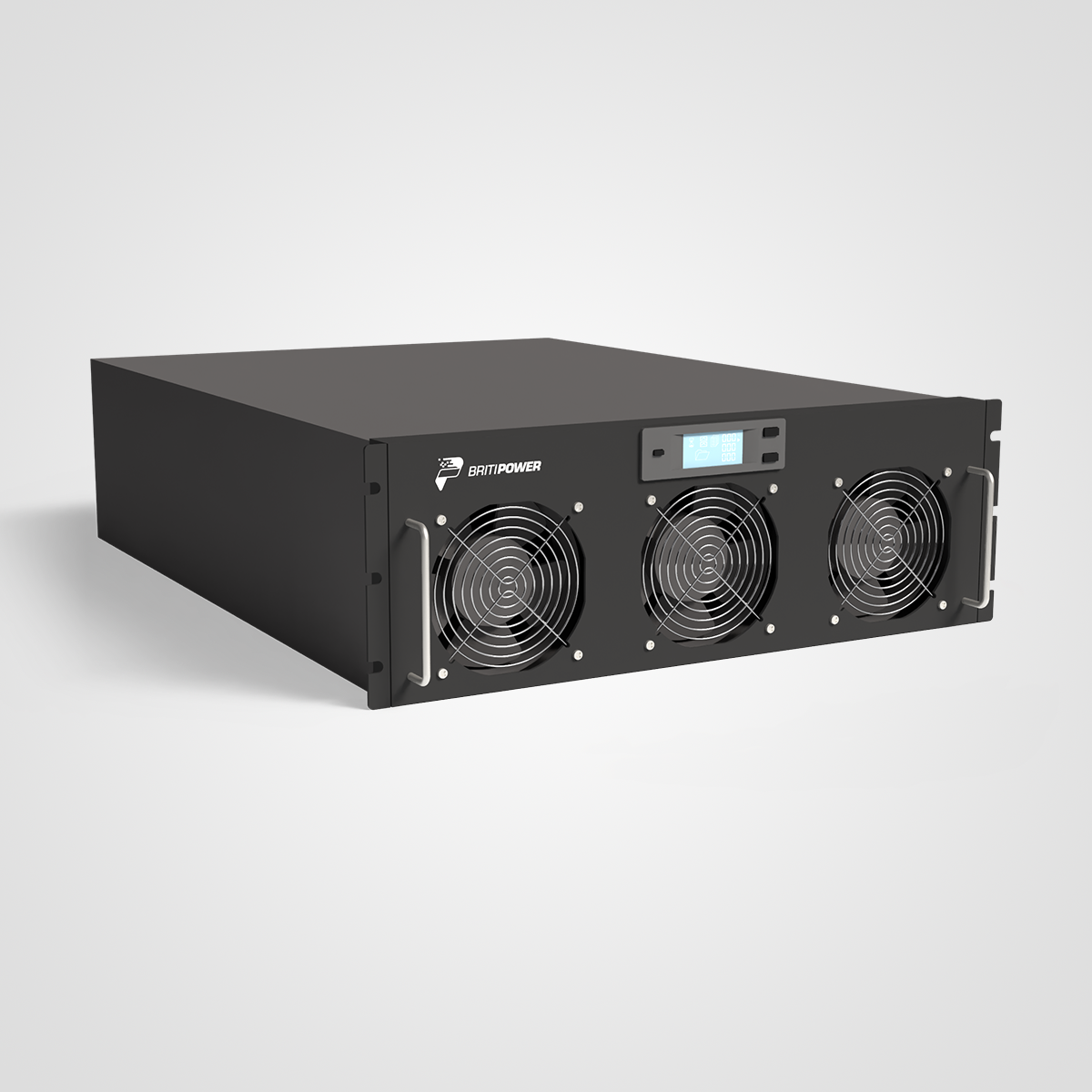

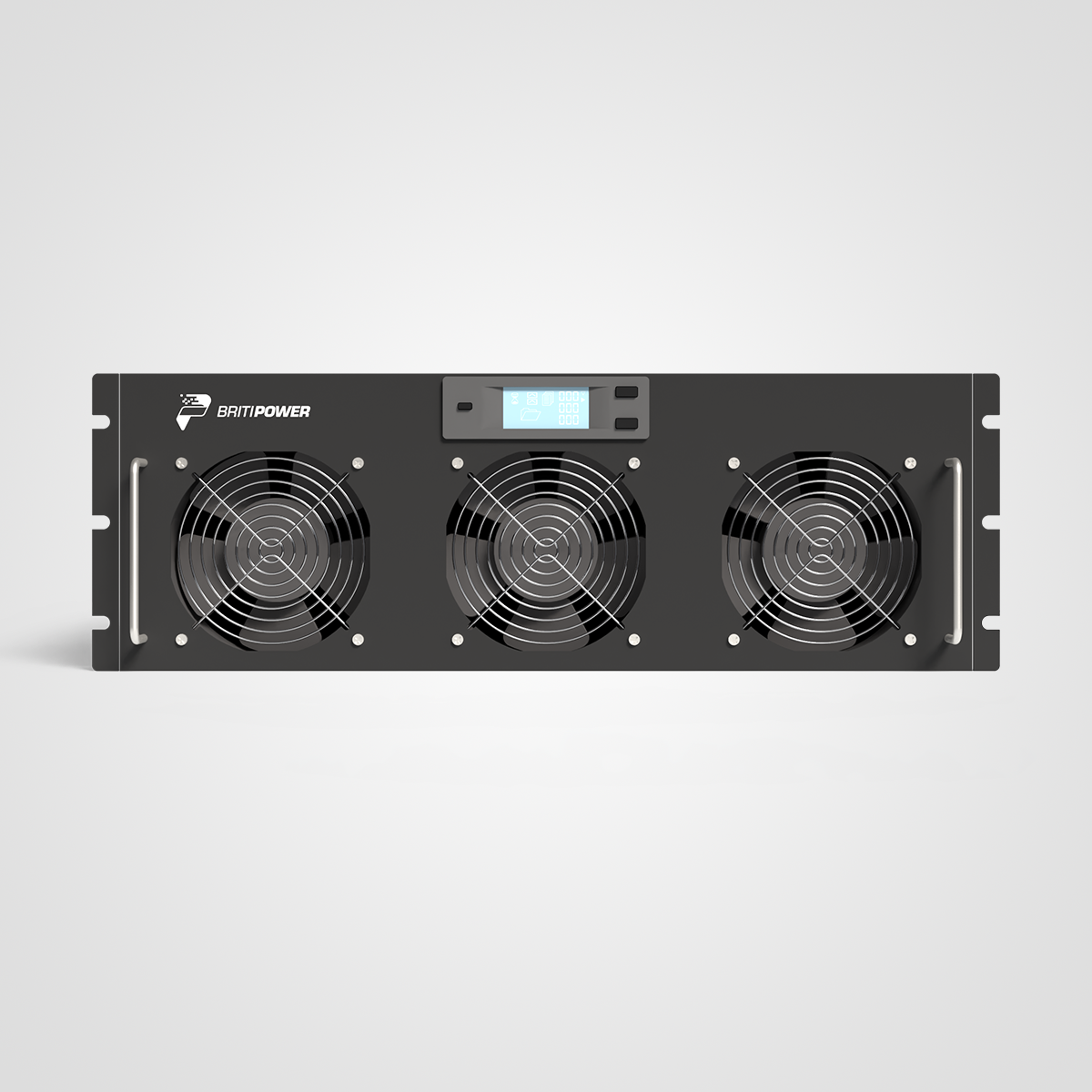

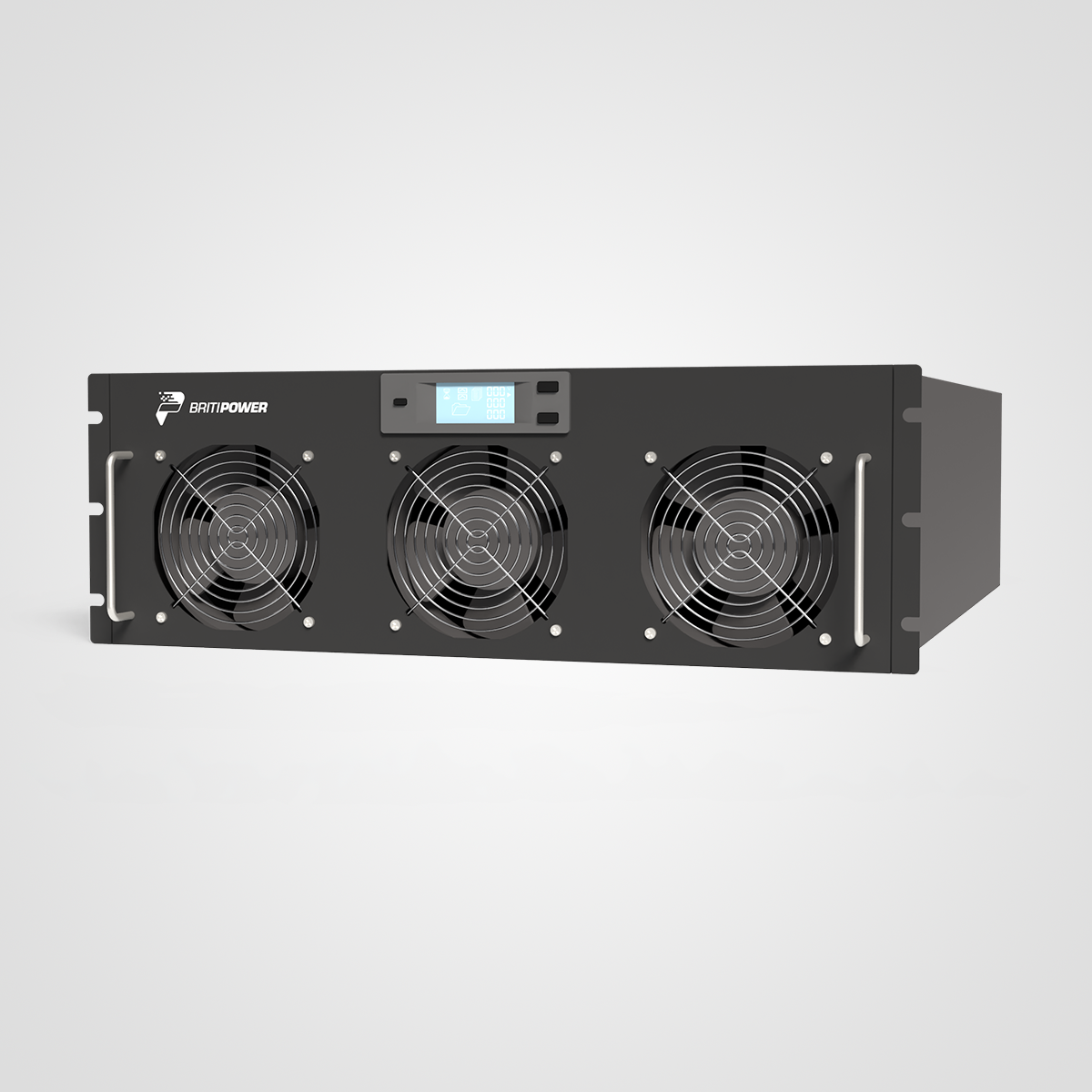

Utilizes 50 kVA power modules in a compact 4U height, allowing fast, simple capacity expansion and reduced installation complexity.
Outstanding operating efficiency
Advanced three-level inverter technology ensures double-conversion efficiency of up to 96%, significantly lowering energy losses and operating costs.
Intelligent battery charging management
Smart control of the entire charging and discharging process optimizes battery performance, extends service life, and enhances overall system reliability.
Exceptional scalability and flexibility
Configurable from 40 kVA to 600 kVA within a single cabinet, with up to three systems paralleled to achieve capacity or redundancy up to 1,500 kVA.
User-friendly human–machine interface (HMI)
Features a 10.4-inch full-color touch LCD with intuitive graphical display, plus independent LCD monitoring for each power module.
Smart sleep mode for higher efficiency
Automatically powers down unused modules during light-load conditions to increase system load rate and improve overall efficiency.
Comprehensive communication interfaces
Supports RS232, RS485, USB, SNMP, AS400, and programmable dry contacts for seamless system monitoring and integration.
This modular UPS system is ideal for:
- Data Centers & IT – Ensures continuous server and network operations
- Industrial & Manufacturing – Protects automation and production lines
- Healthcare – Powers critical medical equipment and hospital systems
- Telecommunications – Supports telecom towers and network infrastructure
- Banking & Finance – Keeps ATMs, trading platforms, and data secure
- Transportation & Infrastructure – Ensures reliable power for airports and traffic control
- Government & Emergency Services – Supports military, defense, and emergency response systems
Perfect for any mission-critical environment requiring uninterrupted power and scalability.
