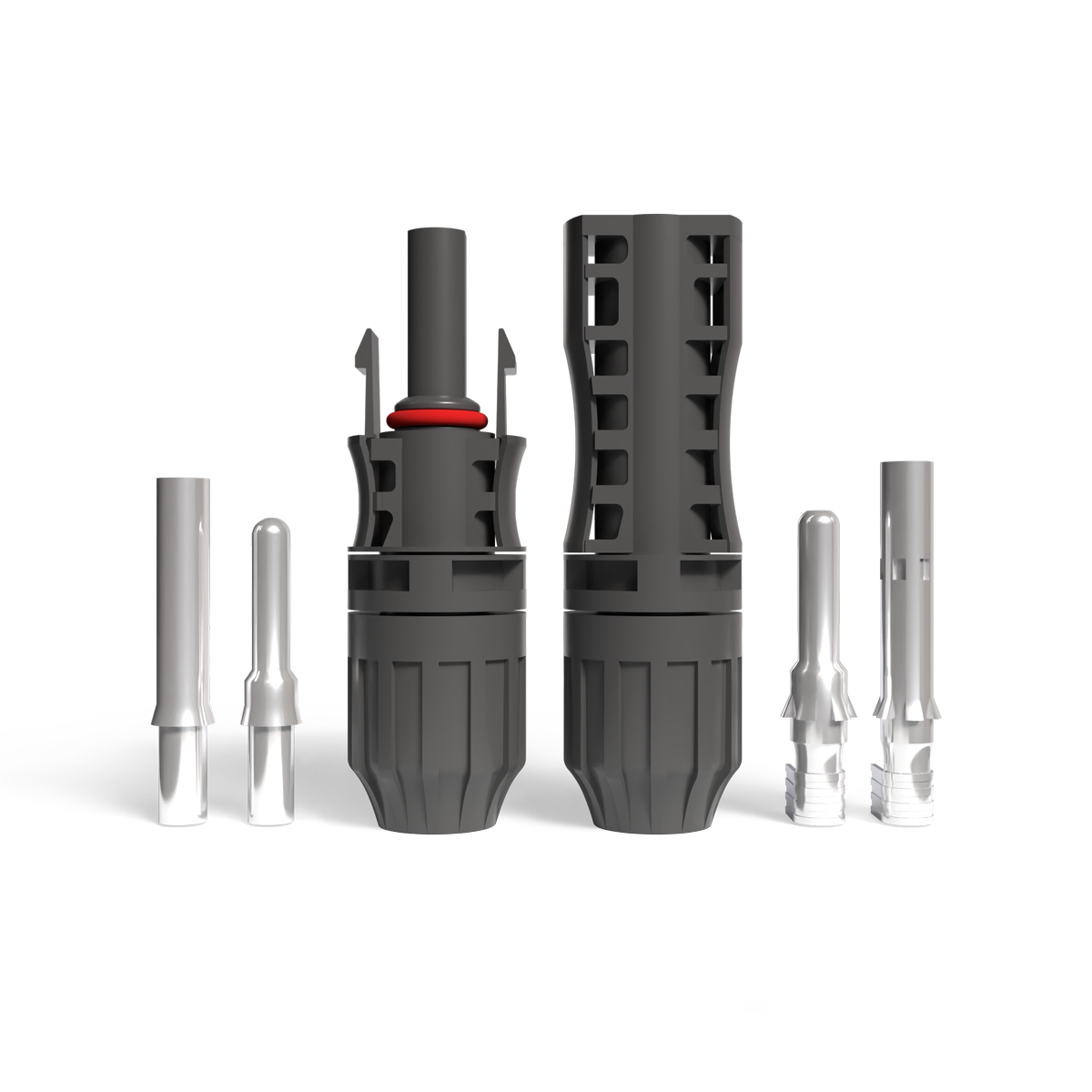

The E2 Photovoltaic Connector is designed to provide secure, reliable, and efficient electrical connections in photovoltaic systems. Manufactured from high-quality PPO insulation material and featuring an IP68-rated sealing design, it delivers outstanding performance in demanding outdoor environments..
1500V E2 Photovoltaic Connector
BritiPower delivers a comprehensive range of high-performance solar products designed to maximise efficiency, reliability, and long-term performance. Our portfolio includes solar inverters, battery energy storage systems, PV connectors, branch connectors, junction boxes, and installation accessories, providing complete solutions for residential, commercial, and utility-scale photovoltaic installations. Engineered to the highest standards, BritiPower products offer dependable operation, easy installation, and durable performance in even the most demanding environments.
Benefits
- Reliable long-term electrical performance
- Excellent resistance to UV, moisture and harsh weather
- Fast and secure cable termination
- Reduced power loss through low contact resistance
- Suitable for high-voltage PV applications up to 1500V DC
- Rated for 1500V DC photovoltaic systems
- Supports currents up to 50A
- IP68 waterproof and dustproof protection
- Class A application level
- Flame-retardant V-0 insulation material
- Low contact resistance for improved efficiency
- Suitable for harsh outdoor environments
- Compatible with 4mm², 6mm² and 10mm² solar cables
The E2 connector is ideal for:
- Residential solar installations
- Commercial PV systems
- Utility-scale solar farms
- Rooftop photovoltaic arrays
- Ground-mounted solar installations
| Specification | Value |
| Model | E2 Photovoltaic Connector |
| Rated Voltage | 1500V DC |
| Maximum Current | 30A / 45A / 50A |
| Cable Size | 4mm² (12 AWG), 6mm² (10 AWG), 10mm² (8 AWG) |
| Application Level | Class A |
| Protection Category | II |
| Protection Rating | IP68 |
| Operating Temperature | -40°C to +85°C |
| Insulation Material | PPO |
| Contact Resistance | ≤5mΩ |
| Fire Rating | UL94 V-0 |
