The BritiPower PV-HAO Photovoltaic Connector is designed to deliver secure, efficient, and long-lasting electrical connections for photovoltaic installations. Engineered for demanding outdoor environments, it combines excellent electrical performance with a robust IP68-rated design, ensuring dependable operation throughout the lifetime of a solar installation..

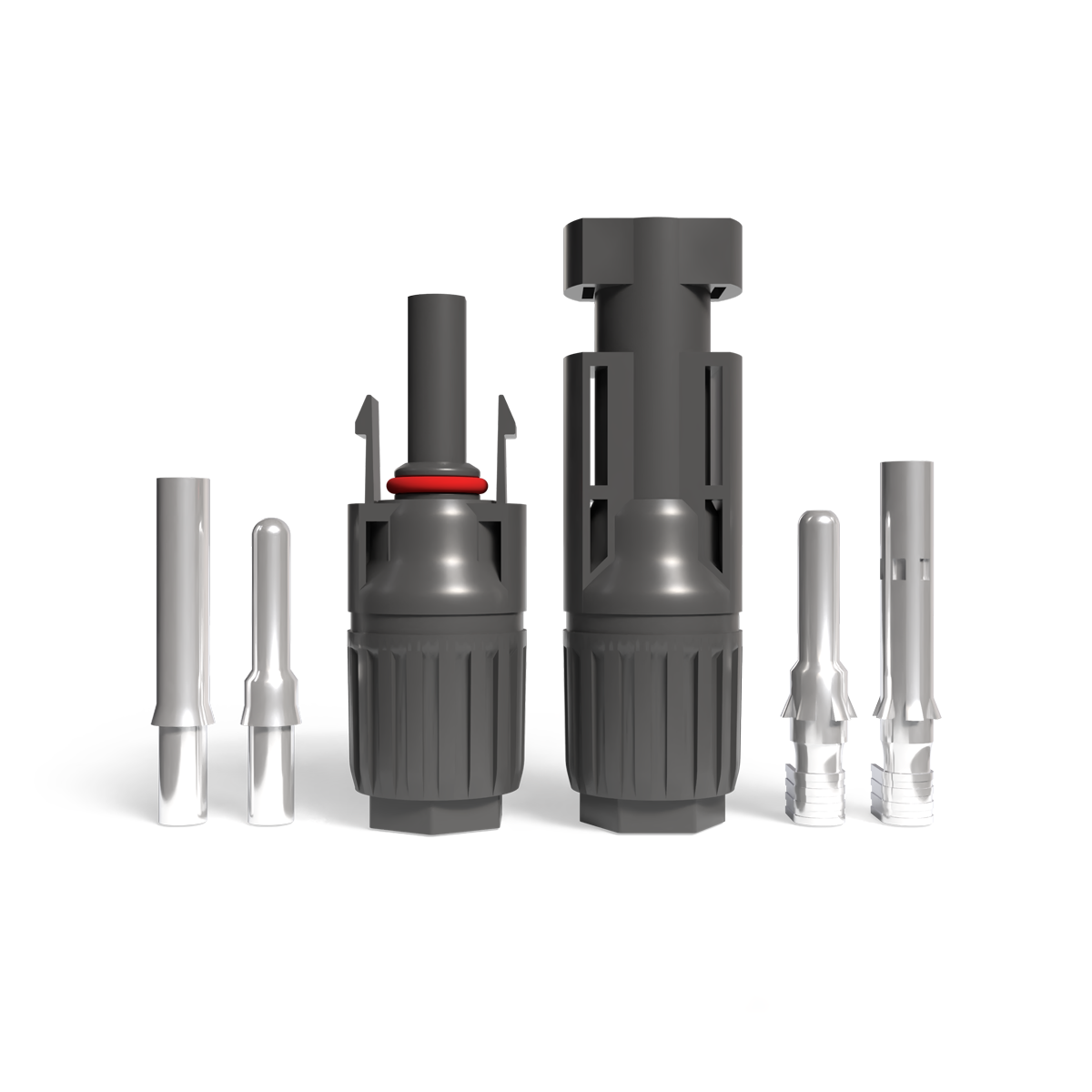

1000V Photovoltaic Line End Connector
Product Features
Secure & Reliable Electrical Connection – Designed to provide low contact resistance and stable current transfer, the PV-HAO connector helps maximise system efficiency while reducing power losses.
- Rated for up to **1000 V DC**
- Current ratings of **30 A or 45 A**
- Low contact resistance for improved electrical performance
- Reliable long-term connection under continuous operation
IP68 Environmental Protection – Built to withstand harsh outdoor conditions, the connector offers complete protection against dust and prolonged water ingress.
- IP68-rated enclosure
- Suitable for permanent outdoor installation
- Excellent resistance to moisture, dirt and environmental contaminants
Durable PPO Insulation – Manufactured using high-quality Polyphenylene Oxide (PPO) insulation material, the connector is designed for long service life in demanding environments.
Benefits
- High Temperature Resistance – Maintains performance in elevated operating temperatures.
- Low Temperature Performance – Remains reliable in cold climates without cracking or degradation.
- Flame Retardant Construction – V-0 fire-rated material enhances installation safety.
- Weather Resistant – Designed for continuous outdoor exposure in photovoltaic applications
- High-Efficiency Electrical Connection
- Superior Environmental Protection
- Durable PPO Construction
- Applications
- Solar panel interconnections
- Residential PV systems
- Commercial rooftop installations
- Utility-scale photovoltaic arrays
- Solar combiner boxes
- High-efficiency DC power systems
| Specification | Value |
| Model | R4 Photovoltaic Connector |
| Rated Voltage | 1000 V DC |
| Rated Current | 30 A / 45 A |
| Protection Rating | IP68 |
| Protection Class | Class II |
| Cable Sizes | 2.5 mm² (14 AWG), 4 mm² (12 AWG), 6 mm² (10 AWG) |
| Contact Resistance | ≤5 mΩ |
| Operating Temperature | -40°C to +85°C |
| Insulation Material | PPO |
| Fire Rating | V-0 |
| Application Class | Class A |
