The Oxford Model 04 Series is a high-performance online double-conversion rack-mounted UPS, designed to deliver reliable and stable power protection for critical electronic systems. Ranging from 1kVA to 10kVA, the series is built with advanced fully DSP-controlled technology, ensuring precise power management, fast dynamic response, and enhanced system stability in demanding environments.
For 6–10kVA models, the Oxford Model 03 Series incorporates advanced three-level inverter technology, significantly improving energy efficiency to as high as 95%. Combined with a unity power factor (kW = kVA), this design maximizes usable output capacity, making it highly efficient for modern IT and industrial loads.
Engineered in a compact 2U rack form factor with high power density, the Oxford Model 04 Series delivers maximum performance while minimizing space requirements. Its standardized 19-inch rack compatibility allows seamless integration into server cabinets and IT infrastructure. This makes it an excellent solution for environments where space efficiency, reliability, and power quality are equally critical.
The Oxford Model 04 Series is designed to provide consistent, clean power for sensitive equipment, ensuring uninterrupted operation during voltage fluctuations, surges, or outages. With intelligent battery management, advanced thermal control, and comprehensive protection features, it extends system lifespan while maintaining optimal performance.
Overall, the Oxford Model 04 Series is a versatile and efficient UPS solution tailored for modern data-driven environments requiring dependable power continuity and scalable protection.

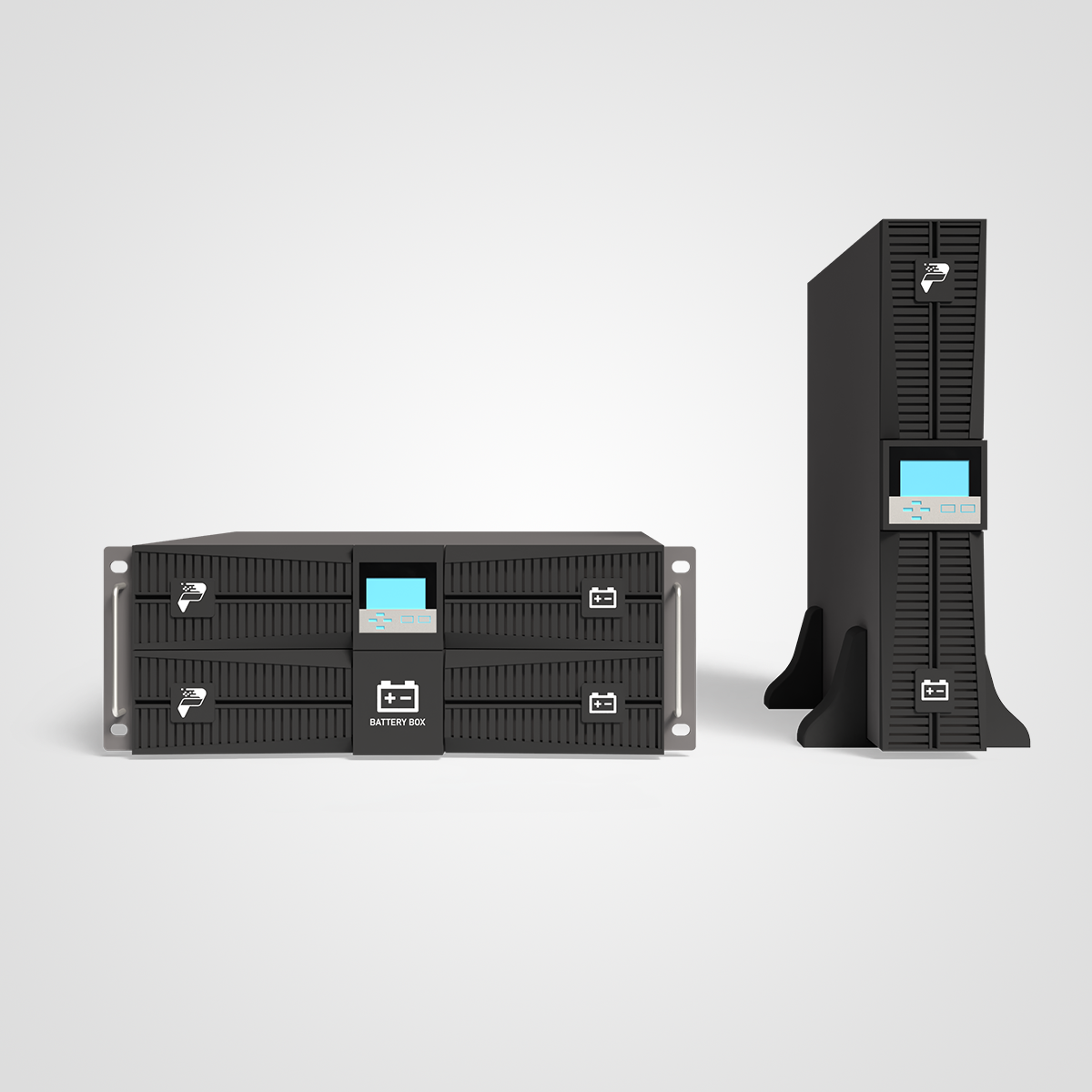

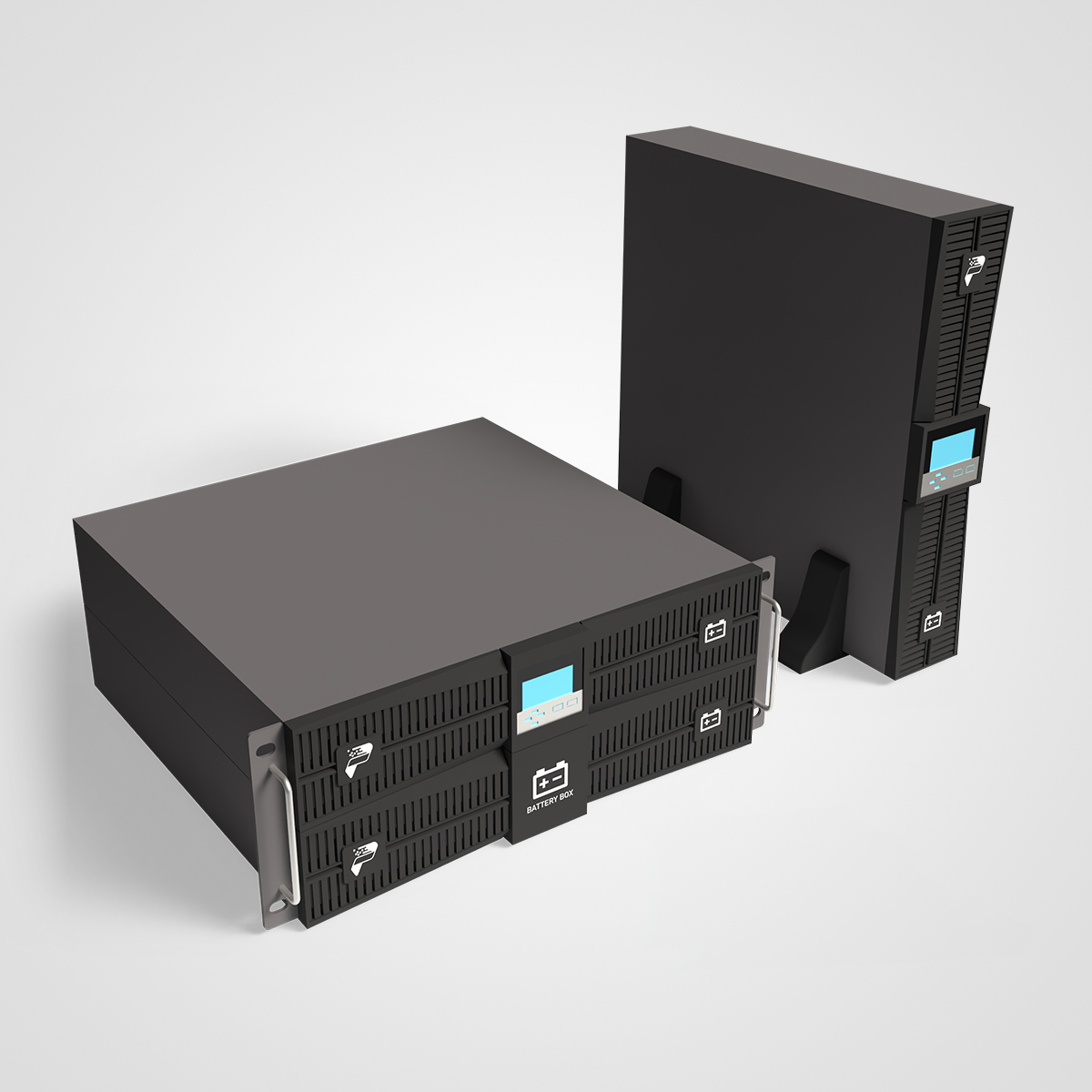

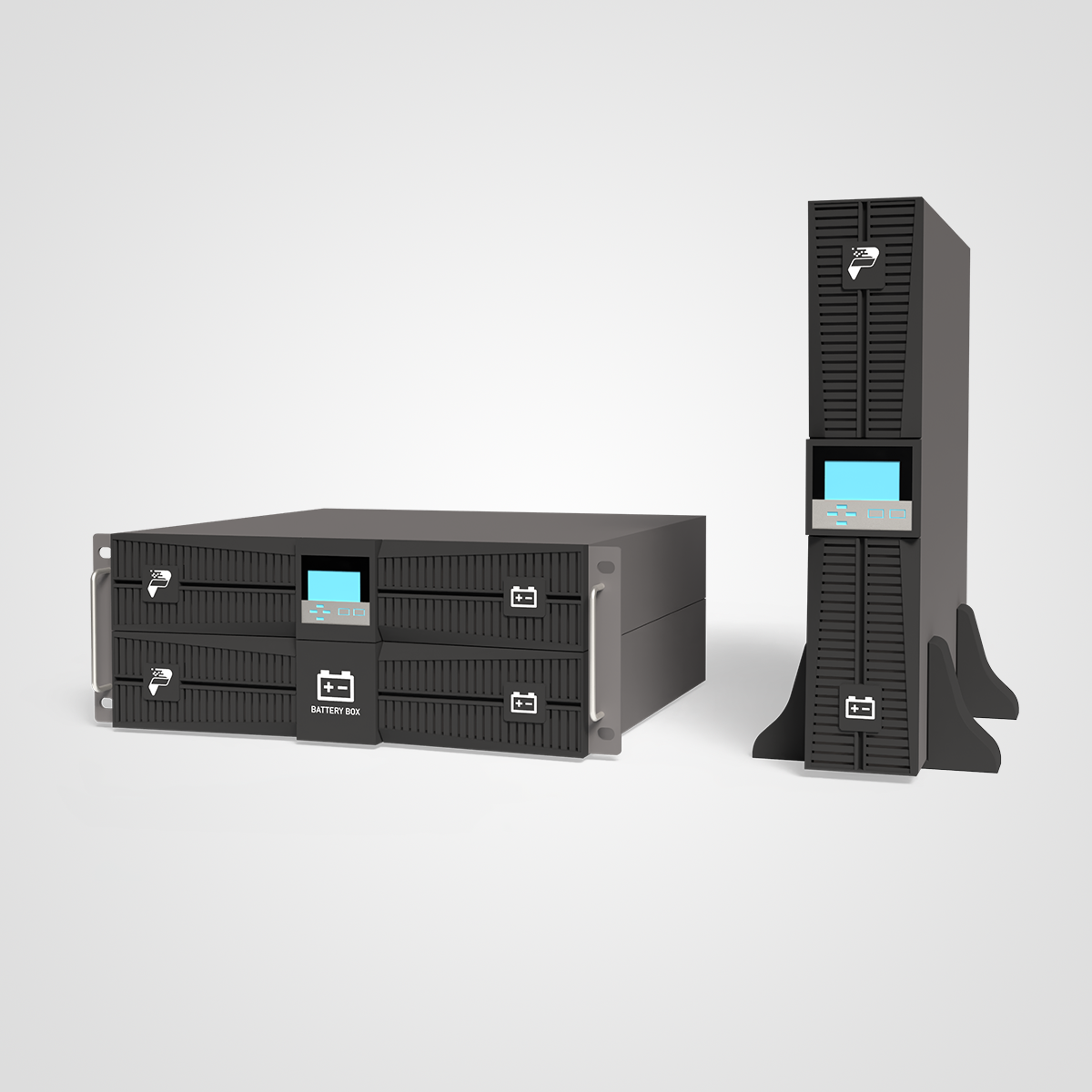

Oxford Rack-Tower Model 04 – On-Line UPS
At Britipower, we understand the critical importance of maintaining uninterrupted power to safeguard your business operations and essential systems. Our Uninterruptible Power Supply (UPS) solutions are designed to provide reliable backup power and ensure the stability and security of your infrastructure. Whether you’re looking to protect small office equipment, data centers, or large-scale industrial applications, our range of UPS systems offers a tailored solution for every need.
- Power range: 1~10kVa
- Mode: Single Phase
- Type: On-Line
Common Features (1–10kVA)
- Wide input voltage range with input power factor > 0.99 for improved energy efficiency and grid compatibility
- Compatible with standard 19-inch rack cabinets and battery cabinets for easy system integration
- Comprehensive protection against overvoltage, short circuit, and overtemperature conditions
- LCD/LED display providing real-time system status monitoring and diagnostics
- Intelligent automatic fan speed control for optimized cooling and reduced noise
- Multiple communication interfaces including RS232, USB, SNMP, and intelligent card support for remote monitoring and management
Unique Features (6–10kVA)
- High operating efficiency of up to 95%, reducing energy loss and operational costs
- Unity power factor output (kW = kVA, PF = 1) for maximum usable power capacity
- Intelligent battery charging management to enhance battery performance and extend service life
- Advanced three-level technology designed for improved performance and compatibility with complex and non-linear loads
- Internet Data Centers (IDC)
- Network infrastructure
- Servers and workstations
- Industrial control systems
- Communication systems
- Office environments
- Personal computers and other sensitive electronic equipment
| Input voltage range | 110Vac-288Vac | |
| 100% load@>176Vac; 80% load@>154Vac 70% load@>132Vac; 50% load@>110Vac |
100% load@>176Vac; 90% load@>160Vac
80% load@>140Vac; 60% load@>110Vac |
|
| Input frequency | 40-70Hz | |
| Input PF | ≥0.97 | ≥0.97 |
| Voltage regulation | ±1 % | |
| Output frequency | 50/60Hz |
