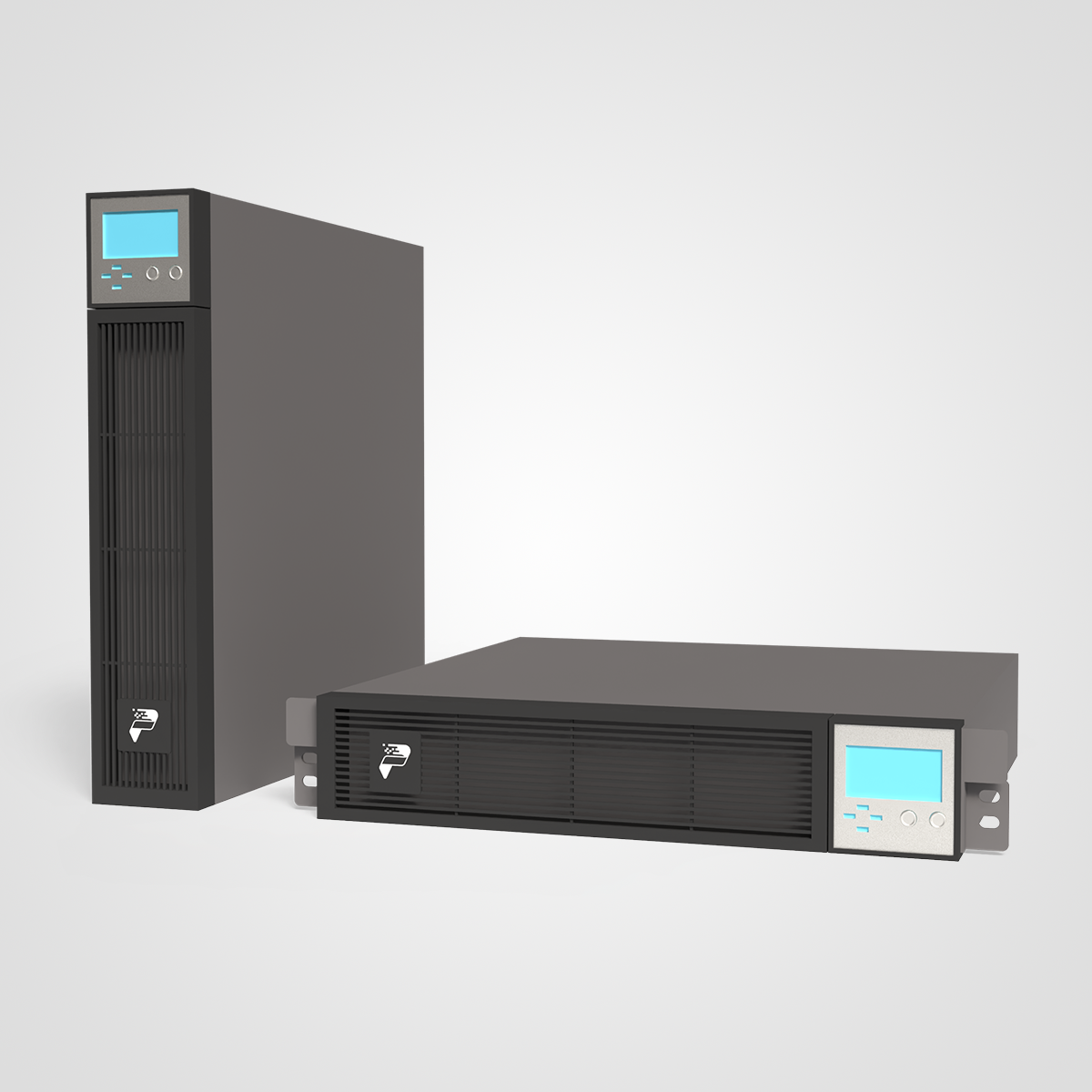

The Oxford Model 3 Tower Online UPS (1–3kVA) is a new-generation, high-density power protection solution engineered to meet the growing demands of modern IT, communication, and industrial applications. Utilizing true double-conversion online technology with fully digital control, Oxford Model 3 continuously delivers clean, stable, and uninterrupted power, effectively isolating connected equipment from all utility power disturbances such as voltage fluctuations, surges, harmonics, and frequency variations.

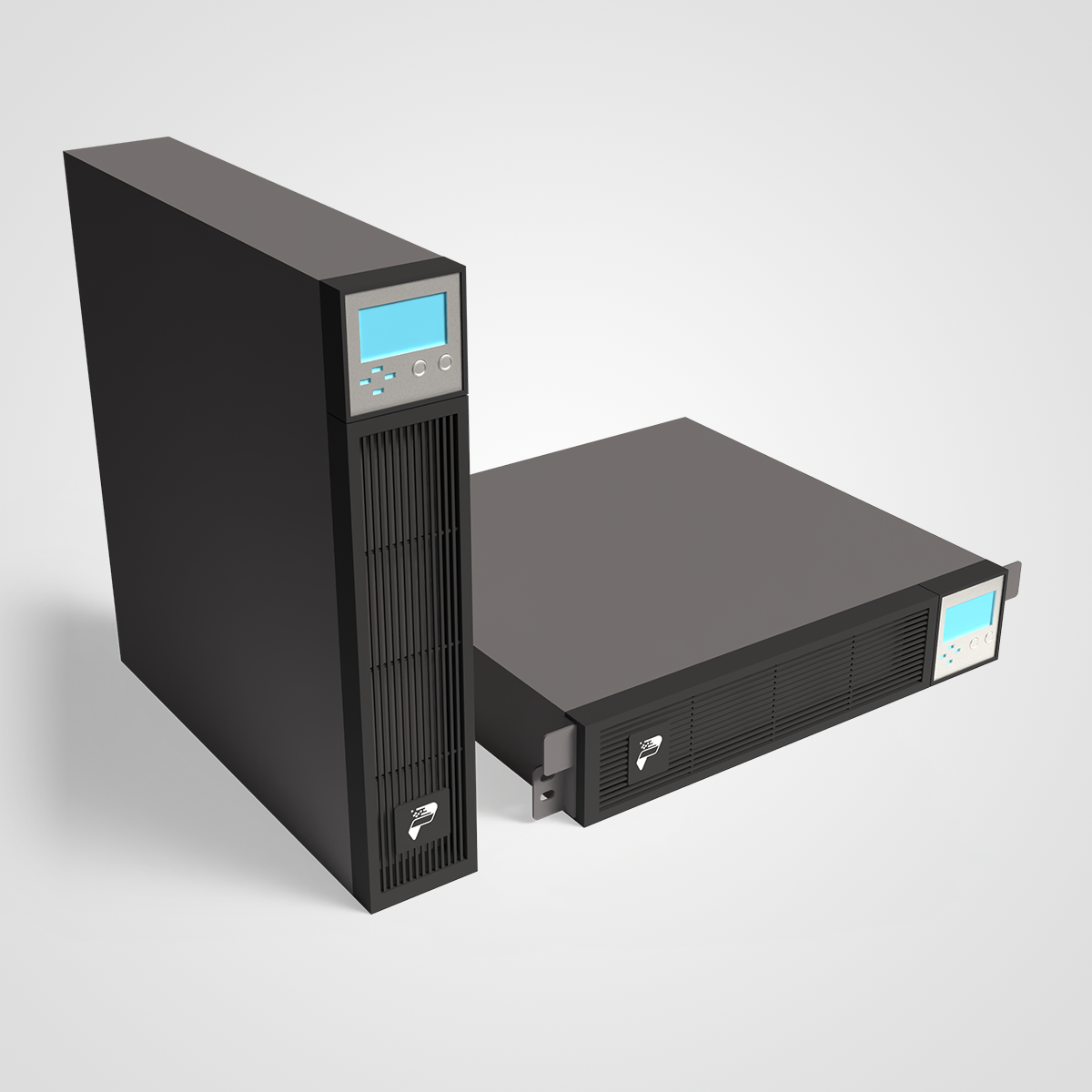

Designed with an output power factor of 1.0, the Oxford Series maximizes usable power, allowing more active load capacity without oversizing the UPS system. Its compact 2U tower structure combines high performance with space efficiency, making it ideal for environments where installation space is limited while power reliability is critical.
The Oxford Series offers exceptional input adaptability with a wide input voltage range, significantly reducing battery discharge cycles and extending battery service life. To address evolving energy storage technologies, the UPS fully supports both lead-acid and lithium battery solutions, featuring intelligent charging management and adjustable charging current up to 12A. This flexibility enables faster charging, optimized battery performance, and seamless integration with different backup time requirements.
With high operating efficiency—up to 95.5% in normal mode and 98% in ECO mode—the Oxford Series helps reduce energy consumption and total operating costs while maintaining superior power quality. Comprehensive communication options, including RS232 and optional SNMP, USB, RS485, and dry contact interfaces, enable easy monitoring, remote management, and system integration.
Combining reliability, flexibility, and advanced protection features.
