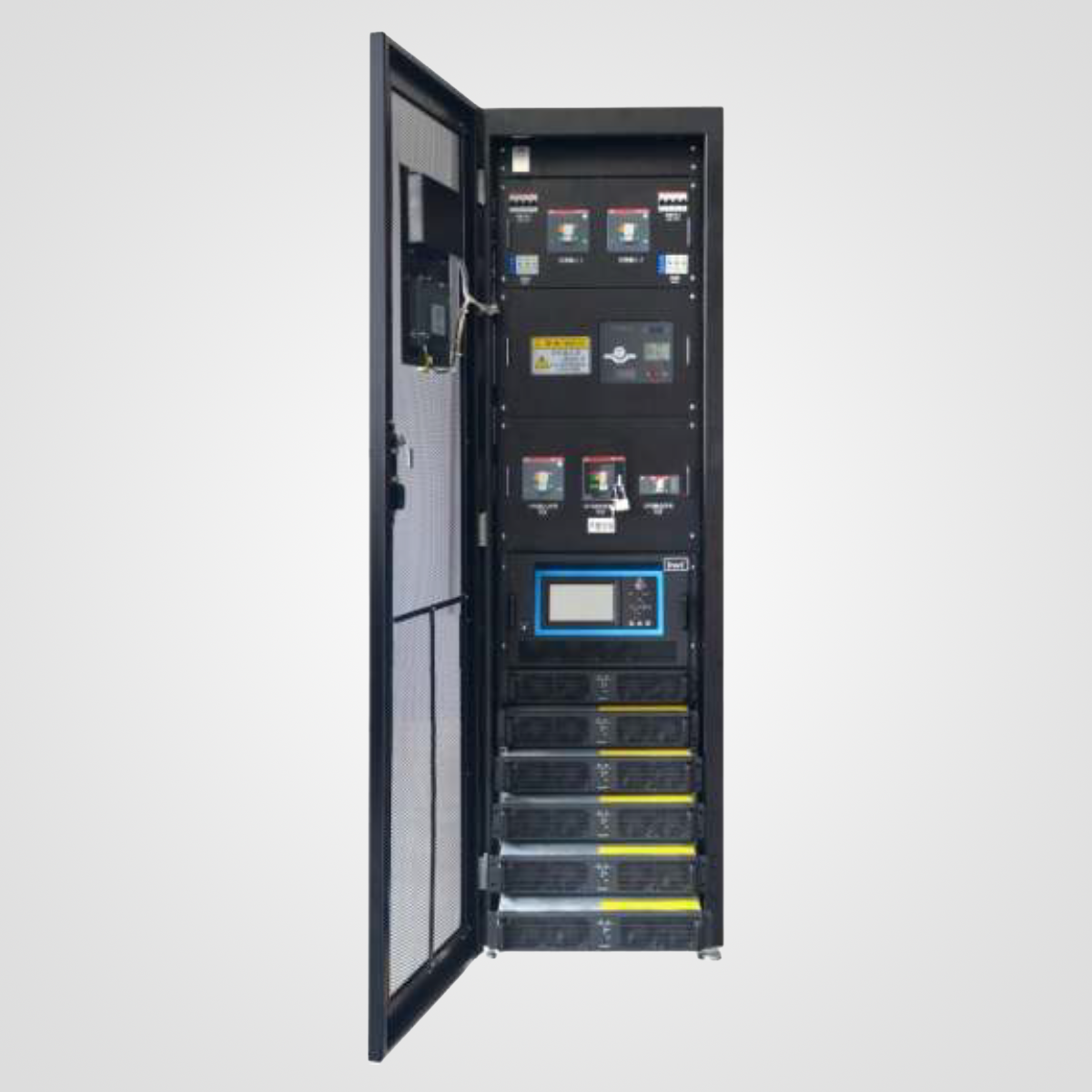

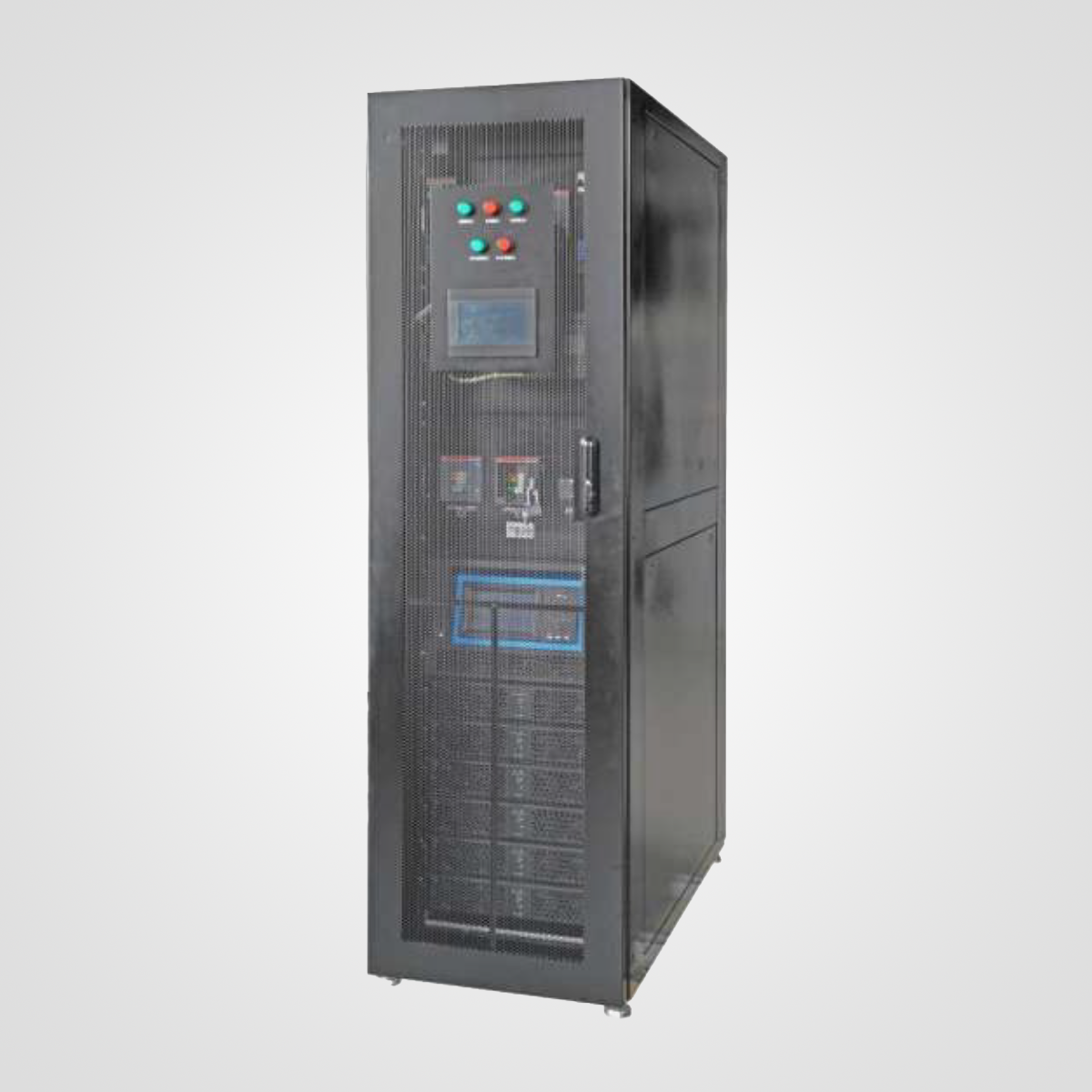

IPDC – Integrated Power Distribution Cabinet

IPDC (Integrated Power Distribution Cabinet) consolidates all critical power supply and distribution functions of a server room into a single, unified cabinet. It brings together ATS/MCCB switching, UPS systems, and power distribution for IT equipment, air conditioning, and lighting, creating a centralized power management solution.

By integrating the UPS input and output distribution, the IPDC ensures stable, uninterrupted power delivery to sensitive IT loads while also simplifying backup power management. The inclusion of ATS (Automatic Transfer Switch) and MCCB (Molded Case Circuit Breaker) enhances electrical safety and reliability by enabling automatic source switching and effective fault isolation.

The cabinet also distributes power to air conditioning systems, which are essential for thermal control, and lighting systems, ensuring full operational support for the server room environment. Centralizing these functions reduces wiring complexity, minimizes installation space, and improves overall system organization.

As a result, the IPDC offers:

• High reliability through integrated protection, redundancy, and standardized design
• Ease of use via centralized monitoring and simplified operation
• Ease of maintenance due to reduced component dispersion and faster fault diagnosis

Overall, the IPDC is a compact, efficient, and scalable solution designed to improve power availability, operational efficiency, and maintainability in modern server rooms and data centers.
