Introducing our high-performance 3-phase tower UPS, designed for efficiency, reliability, and compactness. With a space-saving design and N+X parallel redundancy, it ensures continuous, uninterrupted power by supporting up to 4 units in parallel. Featuring advanced double conversion technology, a wide input range, and flexible battery configuration, it delivers stable, clean power for critical systems. High charging capacity, energy-saving features, and robust protection against overloads, short circuits, and faults make it ideal for demanding environments. With multiple communication interfaces and seamless generator compatibility, it provides reliable performance and easy management.

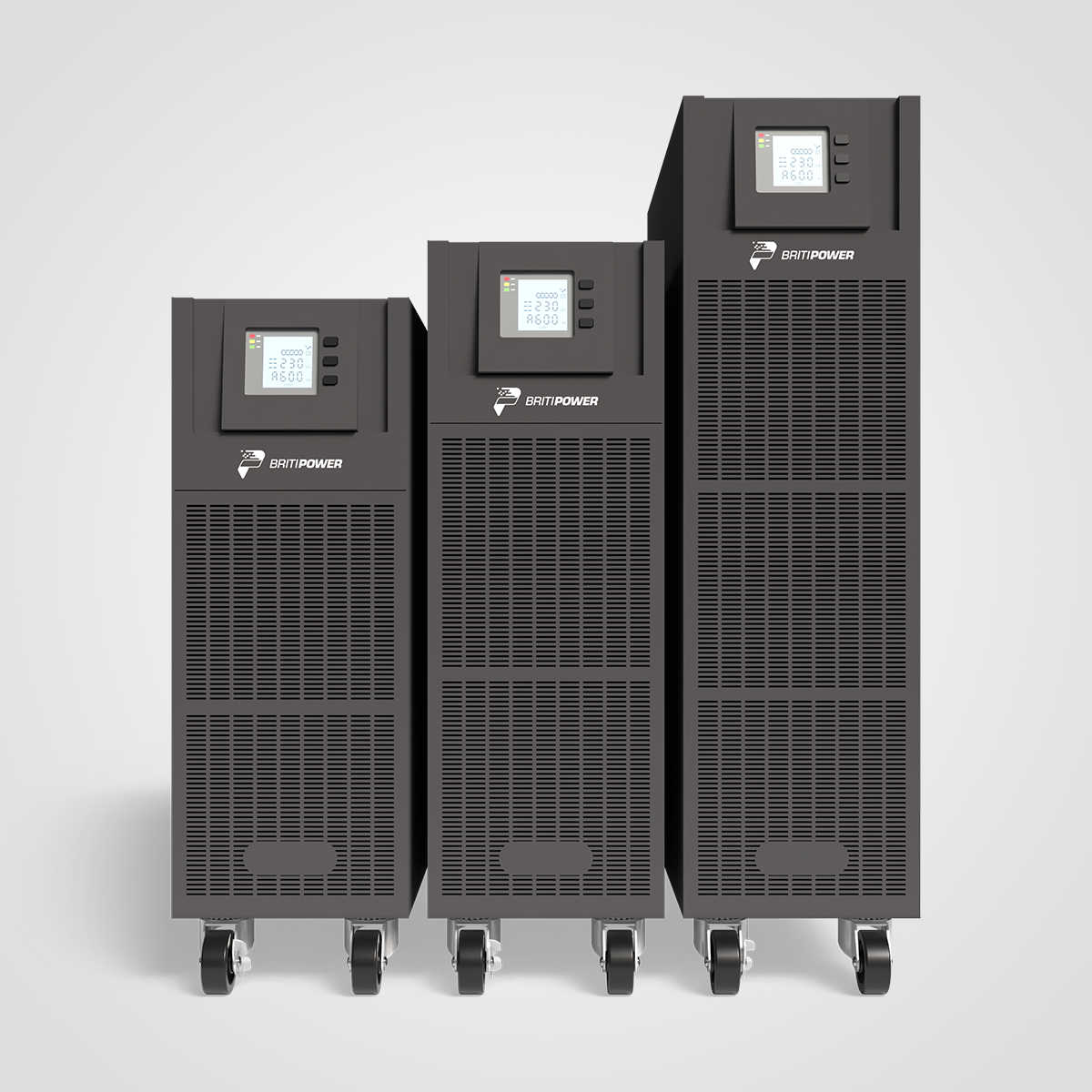

BP Tower Model 01 – Online Transformerless UPS
At Britipower, we understand the critical importance of maintaining uninterrupted power to safeguard your business operations and essential systems. Our Uninterruptible Power Supply (UPS) solutions are designed to provide reliable backup power and ensure the stability and security of your infrastructure. Whether you’re looking to protect small office equipment, data centers, or large-scale industrial applications, our range of UPS systems offers a tailored solution for every need.
- Power range: 400~1200kVA (3-Level PF: 0.9)
- Mode: 3 phase input and 3 phase output
- Module: 10~40kVA
- High Power Density and Redundancy
- Advanced Input and Battery Flexibility
- User Interface and Energy Efficiency
- Robust Load Support and Protection
- Versatile Communication Interfaces
This modular UPS system is ideal for:
- Data Centers & IT – Ensures continuous server and network operations
- Industrial & Manufacturing – Protects automation and production lines
- Healthcare – Powers critical medical equipment and hospital systems
- Telecommunications – Supports telecom towers and network infrastructure
- Banking & Finance – Keeps ATMs, trading platforms, and data secure
- Transportation & Infrastructure – Ensures reliable power for airports and traffic control
- Government & Emergency Services – Supports military, defense, and emergency response systems
Perfect for any mission-critical environment requiring uninterrupted power and scalability.
Input
| Nominal Voltage (Vac) | 380/400/415, (3Ph+N+PE) |
| Operating Voltage Range (Vac) | 138~305 for 40% load; 305~485 for 100% load |
| Power Factor | ≥0.99 |
| Harmonic Distortion (THDi) | ≤3% (100% Linear load) |
| Bypass Voltage Range (Vac) | Max. voltage: 220: +25% (Optional+10%, +15%, +20%) 230: +20% (Optional+10%, +15%) 240: +15% (Optional+10%) Min. voltage: -45% (Optional-10%, -15% -20%, -30%) |
Output
| Nominal Voltage (Vac) | 380/400/415, (3Ph+N+PE) |
| Voltage Regulation | ±1% |
| Output Frequency (Hz) | Line mode: Synchronize with input, when the input frequency >±10% (±1%/±2%/±4%/±5% optional), output 50/60 (±0.1); Bat. mode: (50/60±0.1%) |
| Crest Factor | 3:1 |
| Harmonic Distortion (THDv) | ≤1% with linear load; ≤3% with nonlinear load |
