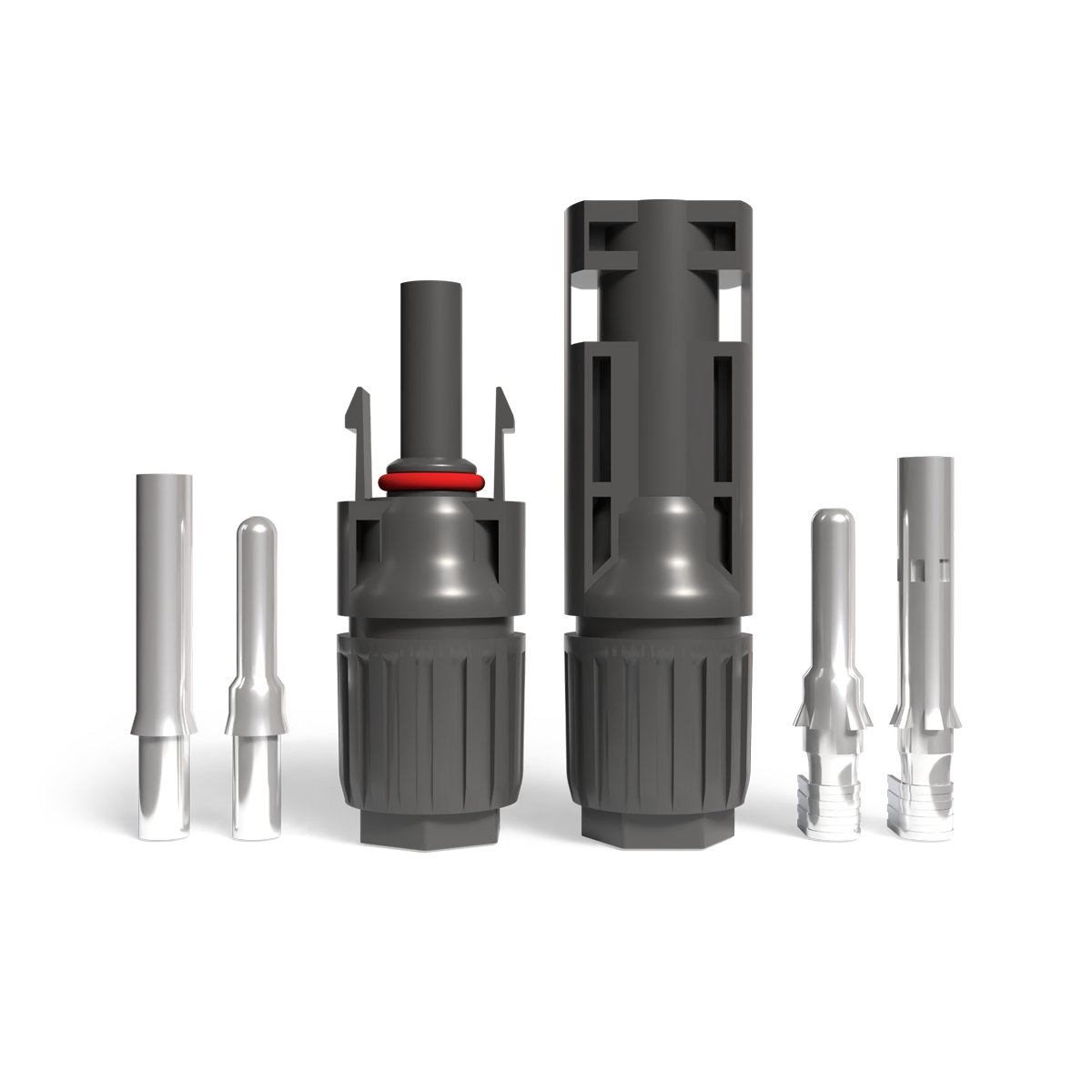

1500V Photovoltaic Line End Connector

1500V Photovoltaic Line End Connector

The 1500V Series Photovoltaic Line-End Connector combines high-voltage capability with robust environmental protection to support reliable electrical connections in demanding solar environments. Its IP68-rated design, low contact resistance and durable PPO construction help deliver efficient, long-term performance across a wide range of photovoltaic applications.

Category:

The 1500V Series Photovoltaic Line-End Connector is designed to provide secure, reliable and efficient cable connections within high-voltage photovoltaic systems. Featuring a robust IP68-rated construction, durable PPO insulation and a wide operating temperature range, it is suitable for demanding outdoor solar installations.

  • Rated for 1500V DC photovoltaic systems
  • Maximum current options of 30A, 45A and 50A
  • IP68-rated protection against dust and water ingress
  • Compatible with 4mm², 6mm² and 10mm² photovoltaic cables
  • Wide operating temperature range from -40°C to +85°C
  • Low contact resistance of ≤5mΩ
  • Flame-retardant V-0 rated insulation material
  • Class A application level
  • Protection Category II
  • Robust line-end design for reliable long-term outdoor performance
  • Residential solar systems
  • Commercial rooftop PV installations
  • Utility-scale solar farms
  • Ground-mounted solar arrays
  • PV module and string connections
Specification Value
Product Series 1500V Series Photovoltaic Connectors
Product Type  Line-End Connector
Model  E4
Rated Voltage 1500V DC
Maximum Current 30A / 45A / 50A
Contact Resistance ≤5mΩ
Compatible Cable Sizes 4mm² (12 AWG), 6mm² (10 AWG), 10mm² (8 AWG)
Application Level Class A
Protection Category II
Ingress Protection Rating IP68
Operating Temperature -40°C to +85°C
Insulation Material  PPO
Fire Rating V-0

PDFDownload Data Sheet
